Chain Conveyor (TCRA)

Chain Conveyors are versatile and allow for the transport of various grains. Its closed structure allows for its operation without any environmental damages.
A linha de silos fundo plano possui como característica o baixo custo por tonelada armazenada, sendo a melhor opção para a armazenagem de grãos a longo período.
Click on the points below to know the differences.
  • Inspection
    Inspection cover that helps visualize transport in a safe way
  • Modulation
    Composed of standardized modules to streamline assembly
  • Sensors
    Sensor options: motion, bushing and temperature sensors.
  • Safety in Operation
    Bushing cover with protection screen for increased safety in operation.
  • Drive
    Drive with protection of moving parts.

ProductDescription

To ensure durability, the chain conveyor is constructed of zinc-coated steel and first-rate moving parts. Its robustness allows it to operate in high capacities, speeding up the transport process in the units, and can also be connected with the embedded sync technology.

Technical Specifications

  • Chain Conveyor Models
    160 - 200 - 250 - 280 - 315 - 400 (soybean and maize) 200 - 250 - 315 - 400 - 500 (rice)
  • Capacities (t/h)
    60 to 300 (soybean and maize) 50 to 220 (rice)
  • Maximum Height (m)
    100 (soybean and maize) 40 (rice)
  • Speed (m/s)
    0.69 to 0.72 (soybean and maize) 0.48 (rice)
  • Body
    Single Double
  • Modulation (m)
    2.0 | 2.5 | 3.0
  • Installed power (hp)
    3 to 30
  • Operation with inclination (°)
    Up to 12
  • Sensors
    Movement Bushing Temperature
  • Safety Standards
    NR 12
  • Movement
    One-way Reversible
  • Valves
    Manual Pneumatic
  • Specific lines
    Soybean and maize line Rice line
  • Connectivity
    Optional: version with IoT panel that monitors the equipment's sensors

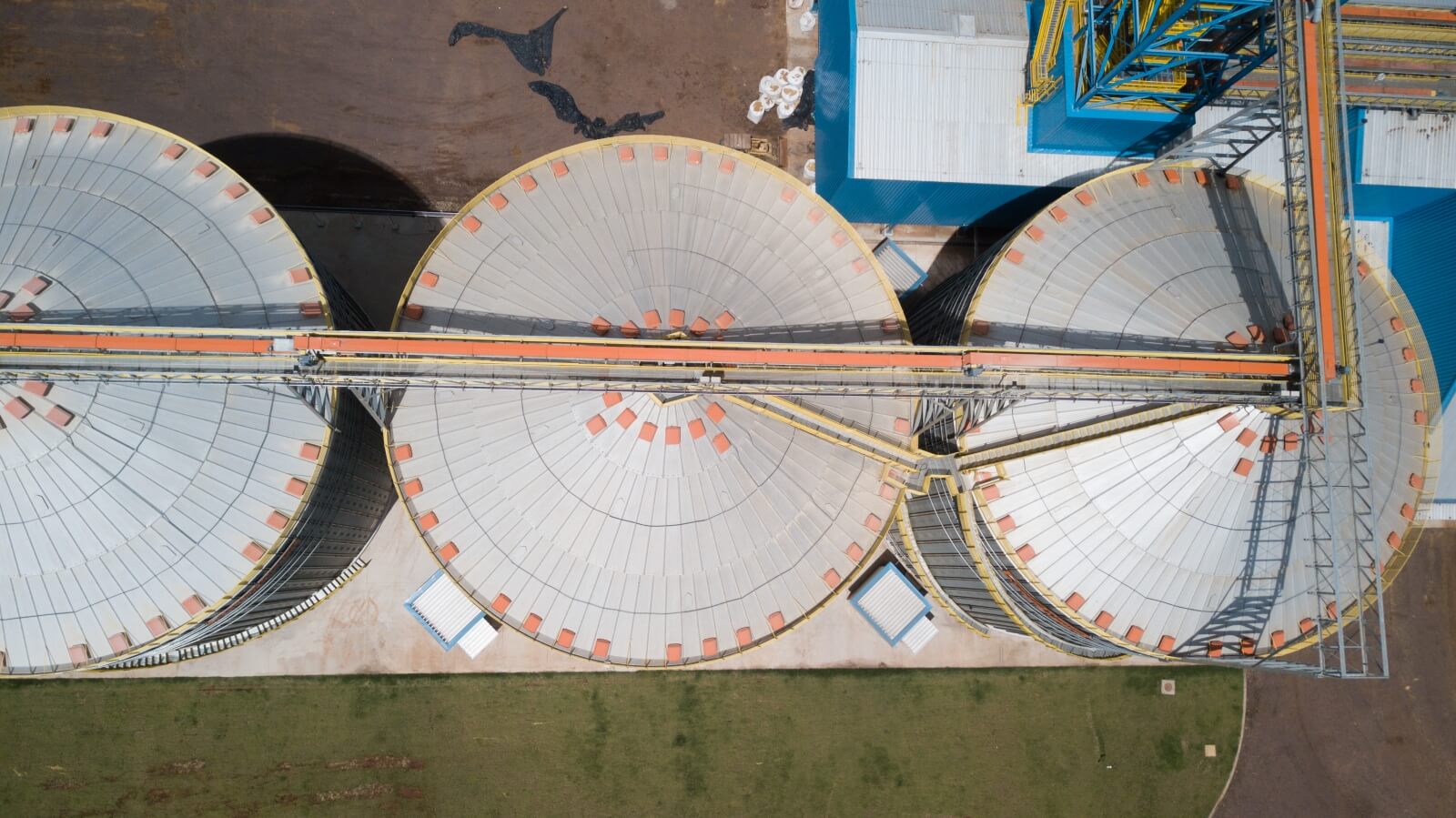

Finished Works
